  PAIN TEST™ FPK ALGOMETER
PAIN DIAGNOSTIC GAGE
Buy Now
Print

  • TESTS PAIN THRESHOLD

  • TESTS PAIN TOLERANCE

  • TESTS TRIGGER & TENDER POINTS

  • MONITORS TREATMENT PROGRESS

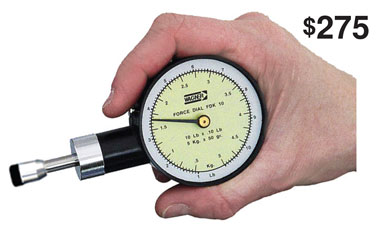

    The Wagner Pain Test™ Model FPK Algometer is the worldwide preferred threshold and pain tolerance gage of physicians, chiropractors, physical therapists and other health practitioners. Pressure algometry has been proven a valid measure of localized pain in muscle, joints, tendons, ligaments and bones.

    The FPK proves to the patient, health practitioner or insurance companies, the benefits of the medication, physiotherapy or applied manipulation.

    As treatment progresses, the FPK quantifies improvements or setbacks. Pain threshold mea- surements provide unique information not obtainable by any other method. This documentation can be used for clinical and research purposes. For patients, the objective measurements give reassurance, confirming their improvement.

    Pain Threshold

    The minimum pressure which induces pain in tender and trigger points of tissue. The FPK quantitatively assesses the tenderness over hypersensitive areas. The FPK lower capacities are used for pain threshold testing. The lower range is appropriate for determining the minimum pressure that triggers pain at the point of interest.

    Pain Tolerance

    The point where a painful pressure stimulus can no longer be tolerated. The FPK, assesses pain-pressure sensitivity of muscle for maxi- mum tolerated pressure. The higher capacities are used for pain tolerance testing. The wider range is necessary for comparative tests between a normal sensitivity control point and the area of interest.

    Pressure Pad - An optional accessory used alternately or in addition to the 1 cm2 rubber tip. The patient is active, pressing the foot, leg or arm against the pressure pad to evaluate pain threshold or pain tolerance.

  • CONSTRUCTION

  • Large 2 1/4" dial. Dual graduations.

  • Plastic housing, stainless steel plunger and plastic crystal.

    OPERATION

  • Compression with 1 cm2 rubber tip.

  • Push button maximum reading hold.

  • Tension hook for accuracy verification with test weights.

    ACCESSORIES

  • 1 cm2 rubber tip, verification hook, carrying case and manual.

  • Optional: 3" x 1 1/4" foam lined aluminum pressure pad.

    ACCURACY

  • ± 2 Grad. (2500 gf), ±1 Grad. (Over 2500 gf).

    WEIGHT & DIMENSIONS

  • 10 oz [284 g] Shipping weight: 1 lb [500 g]

  • 4.5 [115 mm] x 2.25 [60 mm]

    POUND - GRAM MODELS
    Model
    Capacity / Graduation
    Price
    FPK 5
    5 lbf x 0.05 lbf
    2500 gf x 25 gf
    $215.00
    FPK 10
    10 lbf x 0.10 lbf
    5 kgf x 50 gf
    $215.00*
    FPK 20
    20 lbf x 0.25 lbf
    10 kgf x 100 gf
    $215.00*
    FPK 40
    40 lbf x 0.50 lbf
    20 kgf x 200 gf
    $215.00
    FPK 60
    60 lbf x 0.50 lbf
    30 kgf x 250 gf
    $215.00
    NEWTON - GRAM MODELS
    Model
    Capacity / Graduation
    Price
    FPN 20
    20 N x 0.25 N
    2500 gf x 25 gf
    $215.00
    FPN 50
    50 N x 0.5 N
    5 kgf x 50 gf
    $215.00*
    FPN 100
    100 N x 1 N
    10 kgf x 100 gf
    $215.00*
    FPN 200
    200 N x 2 N
    20 kgf x 200 gf
    $215.00
    FPN 300
    300 N x 2.5 N
    30 kgf x 250 gf
    $215.00
    * Models in bold are the popular Algometers with dual use for pain threshold and pain tolerance – the FPK 20 is the most popular. The FPK 10 is the sec- ond most popular with primary use for pain threshold in more sensitive areas.
    Included: FPK or FPN Force Gage, FDK/RT rubber tip, FDK/HK verification hook, manual and carrying case.
    ACCESSORIES
    FDK/RT
    1 cm2 Rubber Tip - Replacement
    $20.00
    FDK/HK
    Accuracy Verification Hook - Replacement
    $9.00
    FPK/FP
    3" x 1 1/4" Pressure Pad - Optional
    $70.00

  • fpk_080306_dd.pdf
      Prices and specifications are subject to change without notice.
